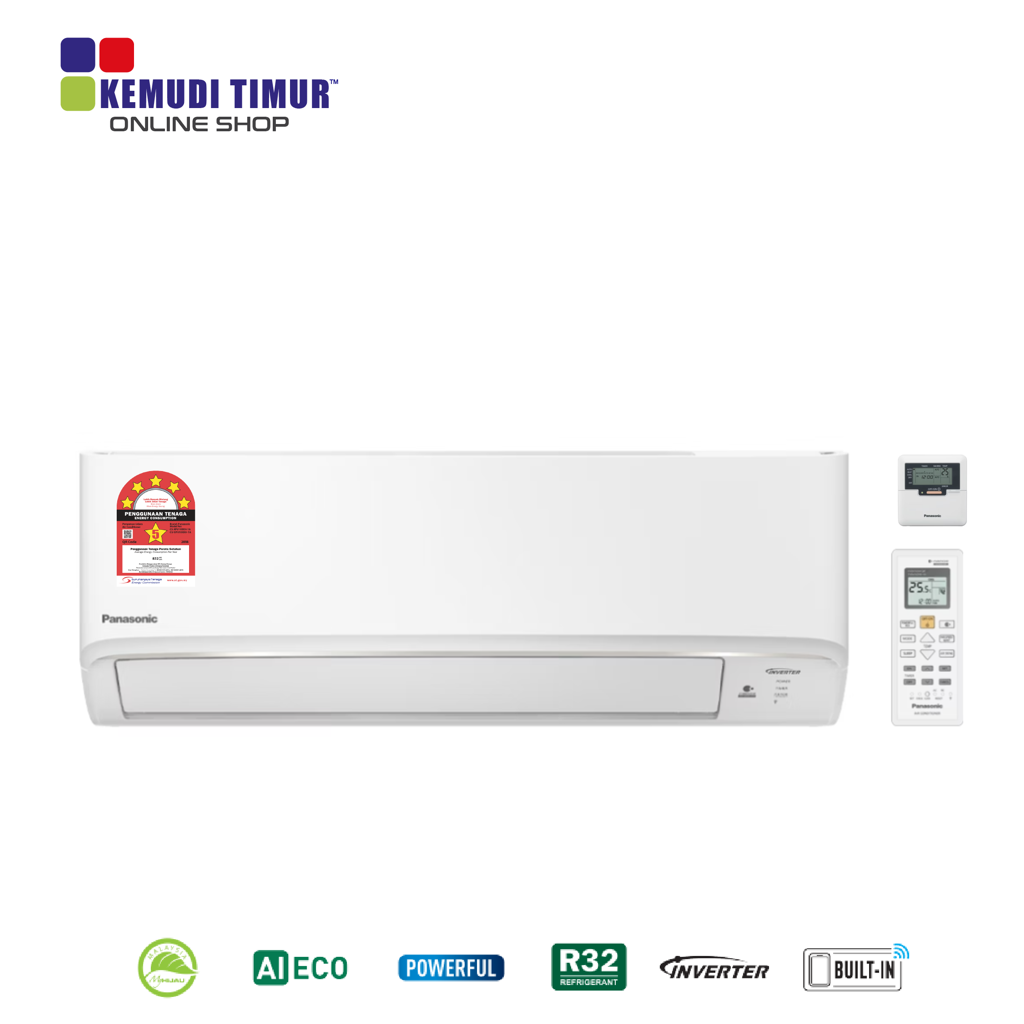

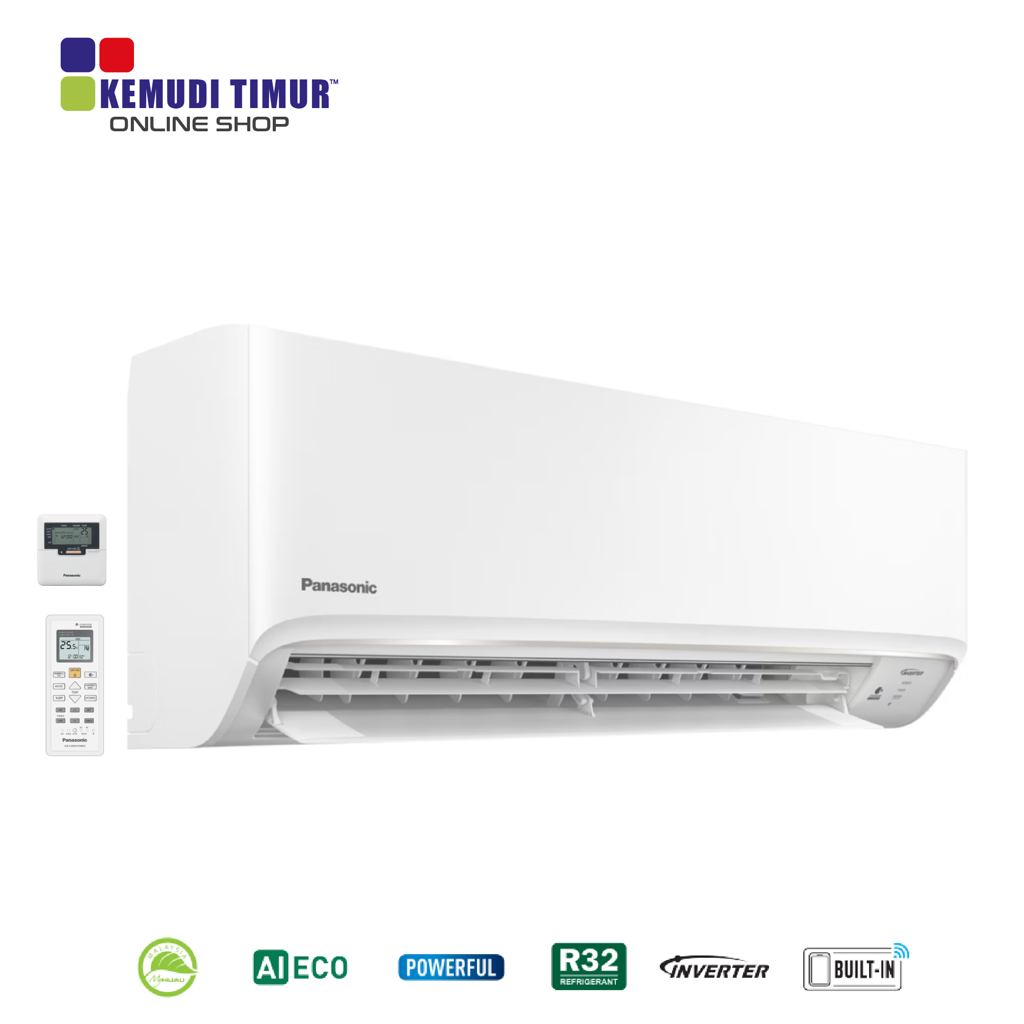

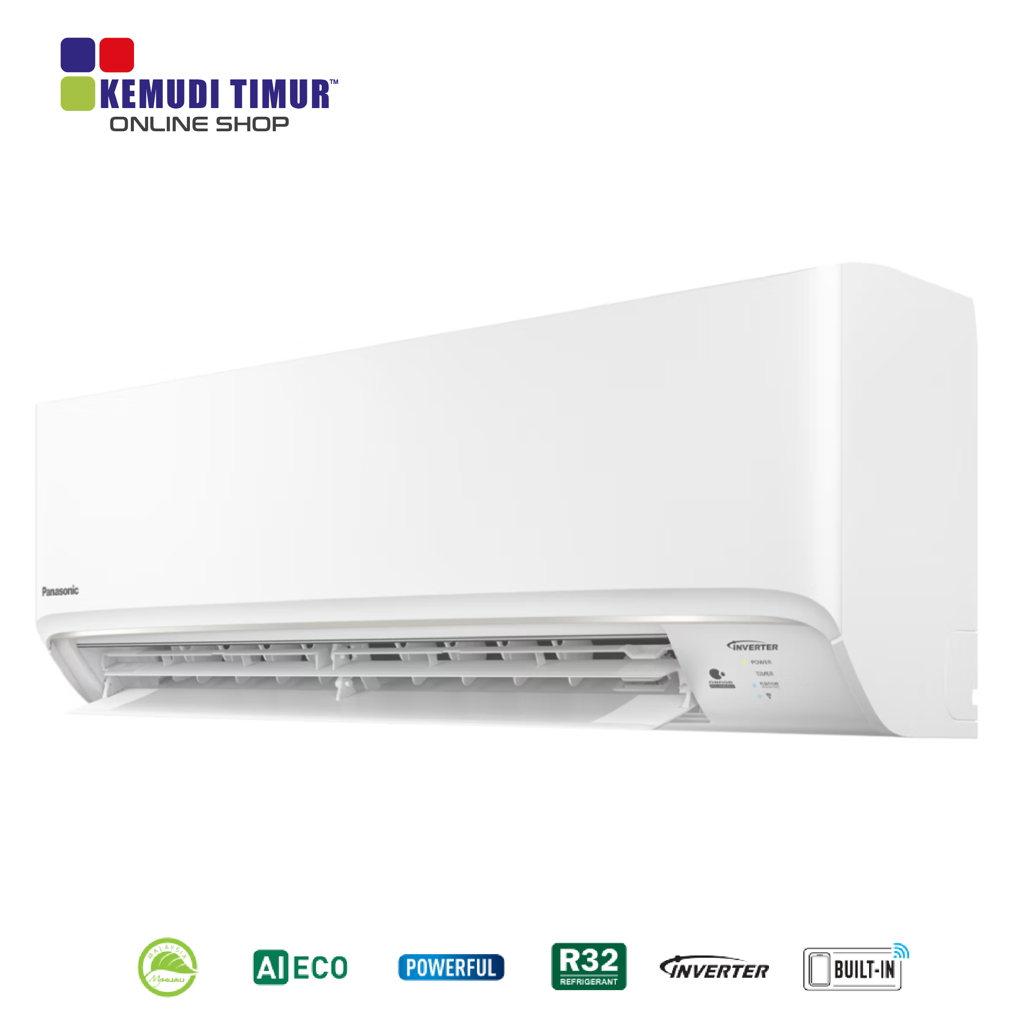

PANASONIC AIRCOND 1HP WALL R32 DELUXE INVERTER WIFI | CS/CU-XPU10XKH

Features:

• Stay Safe Indoors with 24-hour nanoe™ X Air Protection
• Effective in Removing 99% of Dust Particles
• Connect & Control Your Air Conditioners Anywhere, Anytime
• Better Living, Together with Energy-saving and Eco-friendly Technologies

Specifications:

• Model:

• Indoor (50 Hz): CS-XPU10XKH-1
• Outdoor: CU-XPU10XKH-1

• Cooling Capacity (min-max):

• kW: 2.84 (0.90-3.40)
• Btu/h: 9,680 (3,070-11,600)

• EER (min-max):

• Btu/hW: 13.26 (13.64-11.26)
• W/W: 3.89 (4.00-3.30)

• CSPF: 5.46 W/W

  Electrical Data:

• Voltage: 230 V
• Current: 3.3 A
• Power Input (min-max): 730 (225-1,030) W

• Moisture Removal:

• 1.7 L/h
• 3.6 Pt/h

• Air Circulation:

• Indoor: 10.3 m³/min (365 ft³/min)
• Outdoor: 27.6 m³/min (970 ft³/min)

• Noise Level:

• Indoor (H / L / Q-Lo): 38/26/19 dB(A)
• Outdoor (H): 47 dB(A)

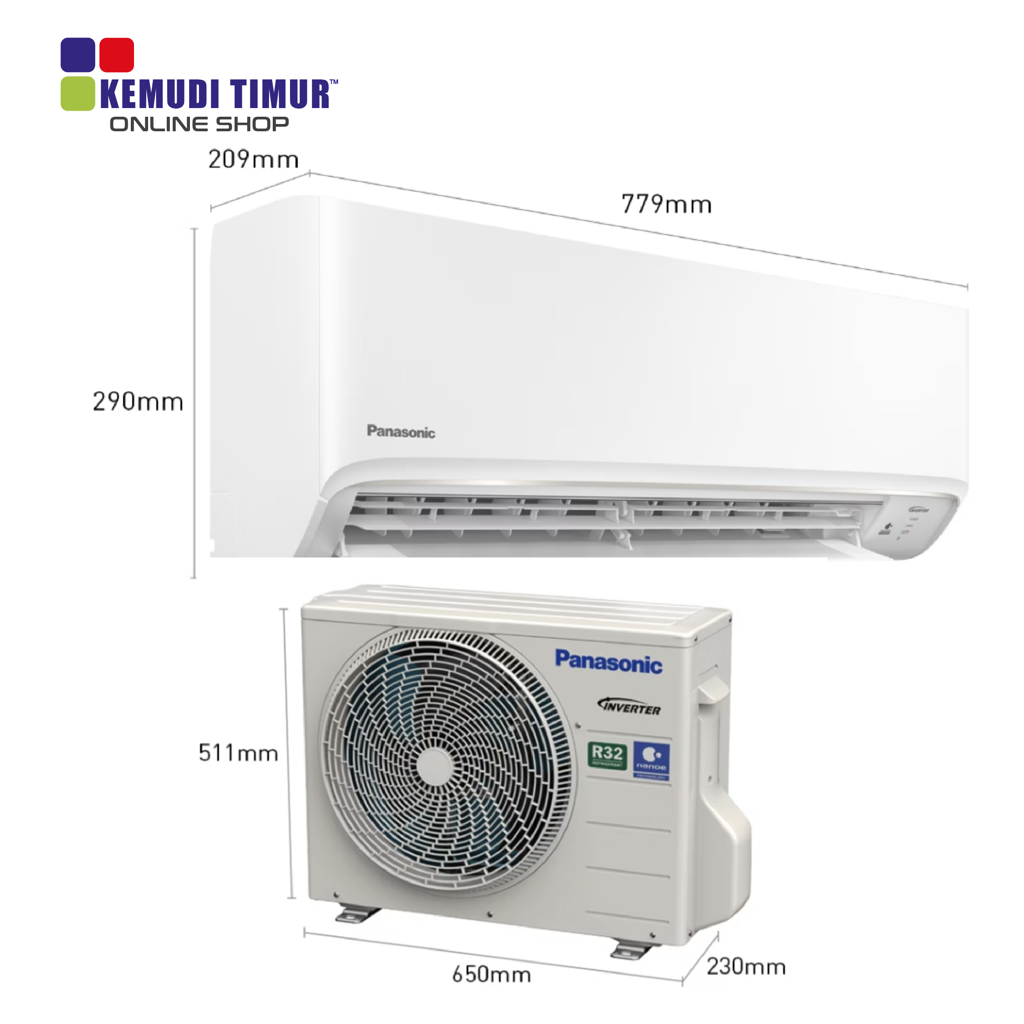

• Dimensions (Indoor):

• Height: 290 mm (11-7/16 inch)
• Width: 779 mm (30-11/16 inch)
• Depth: 209 mm (8-1/4 inch)

• Dimensions (Outdoor):

• Height: 511 mm (20-1/8 inch)
• Width: 650 mm (25-19/32 inch)
• Depth: 230 mm (9-1/16 inch)

• Net Weight:

• Indoor: 8 kg (18 lb)
• Outdoor: 18 kg (40 lb)

• Refrigerant Pipe Diameter:

• Liquid Side: ø 6.35 mm (1/4 inch)
• Gas Side: ø 9.52 mm (3/8 inch)

• Pipe Extension:

• Chargeless Pipe Length: 7.5 m
• Maximum Pipe Length: 20 m
• Maximum Elevation Length: 15 m

• Additional Refrigerant Gas: 10 g/m

  Power Supply: Indoor

  Comfort Features:

• ECO Mode With A.I.: Yes
• Inverter Control: Yes
• Powerful Mode: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Airflow Direction Control (Up & Down): Yes
• Manual Horizontal Airflow Direction Control: Yes

• Cleaner Air Features:

• nanoe™ X: Yes
• nanoe-G: Yes
• Odour Removing Function: Yes
• Removable Washable Panel: Yes

• Convenience Features:

• 24-Hour Dual ON & OFF Real Setting Timer: Yes
• LCD Wireless Remote Control: Yes
• Wireless LAN Remote Control (For Internet Connection): Yes (Built-in)
• Wired Remote Control: Yes (Optional)

• Reliability Features:

• Random Auto Restart: Yes (32 Restart Patterns)
• Blue Fin Condenser: Yes
• Long Piping (max.): 20 m
• Top Panel Maintenance Access: Yes
• Self-Diagnostic Function: Yes

• Note:

• When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
• Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
