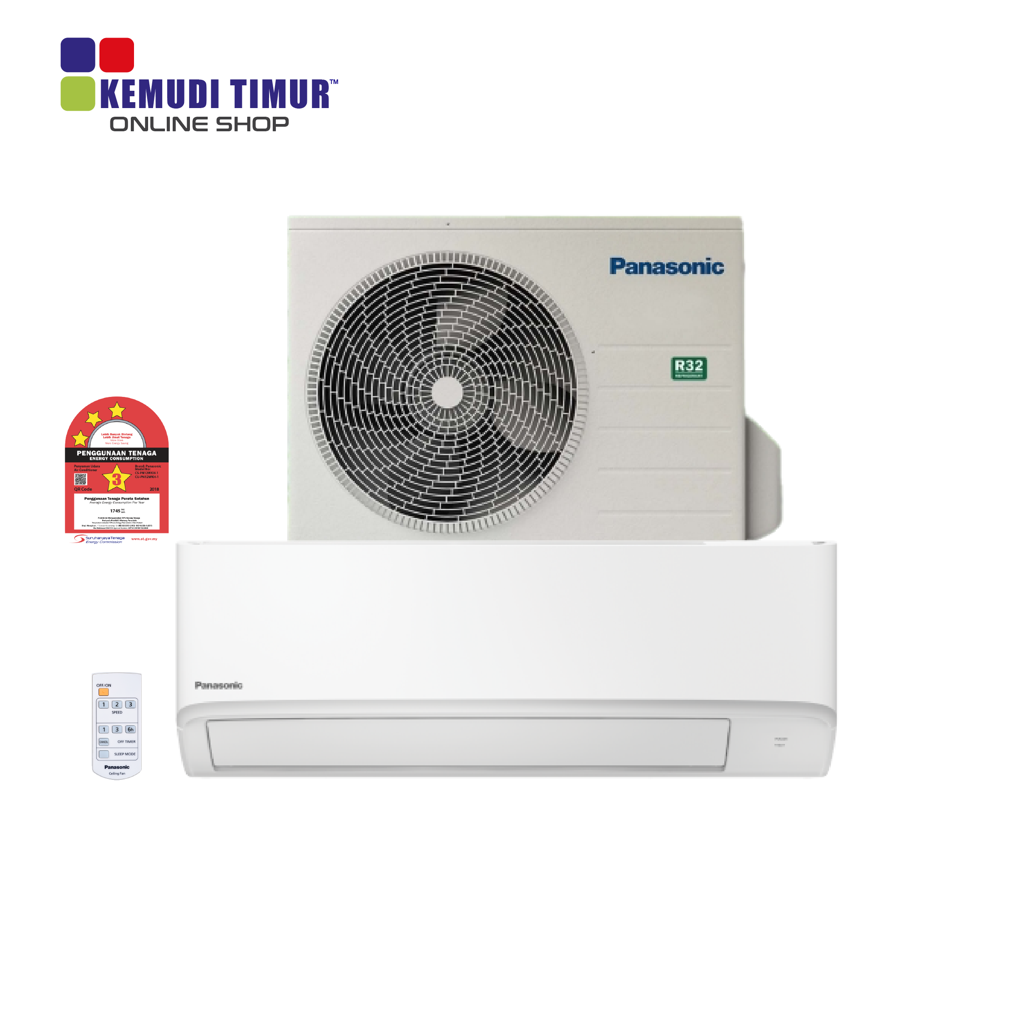

PANASONIC AIRCOND 1.5HP WALL R32 NON-INVERTER | CS/CU-PN12WKH

Features:

Specifications:

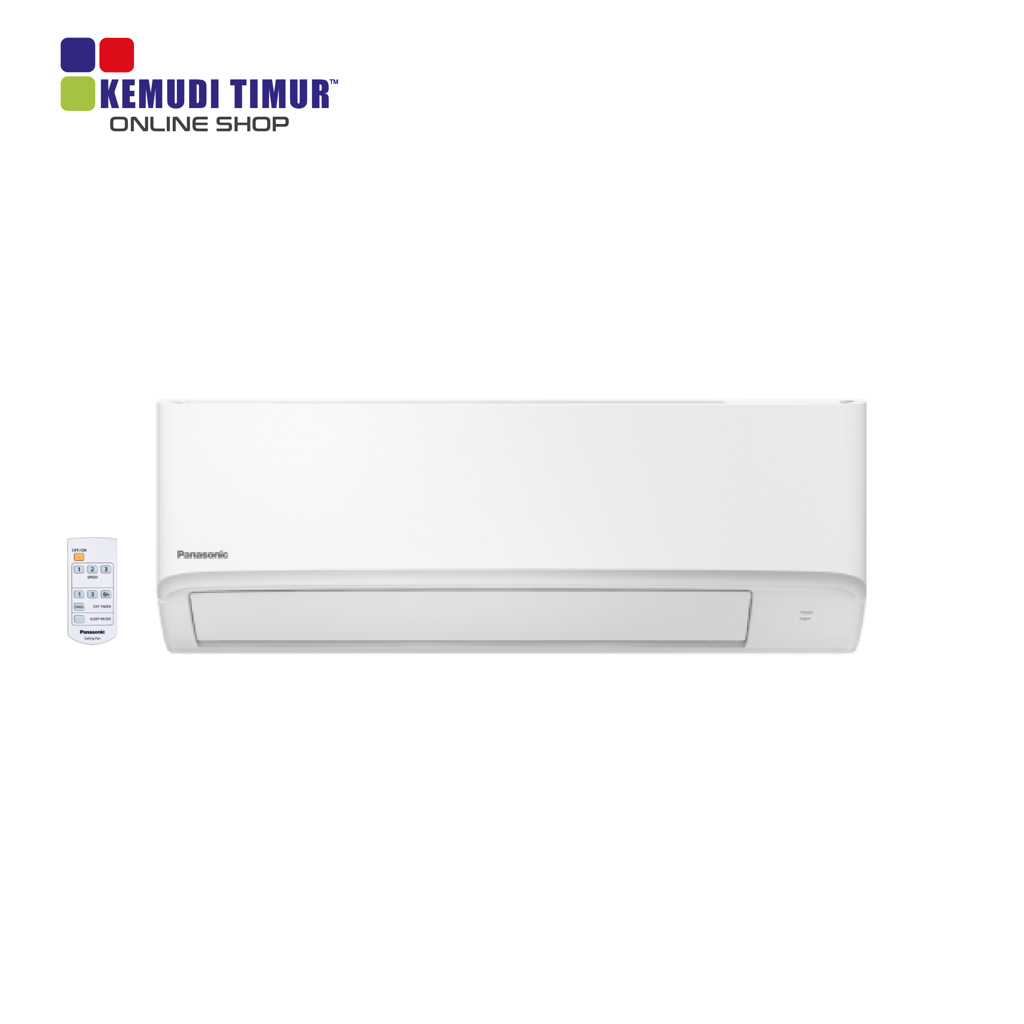

Indoor Unit (CS-PN12WKH-1):

• Cooling Capacity (min-max): 3.52 kW (min) - 12,000 Btu/h (max)
• EER (min-max): 11.21 Btu/hW (min) - 3.29 W/W (max)
• CSPF: 3.43
• Voltage: 230 V
• Running Current: 4.8 A
• Power Input: 1,070 W
• Moisture Removal: 2.0 L/h
• Air Circulation (Indoor): 11.6 m3/min (406 ft3/min)
• Noise Level (Indoor): 41 dB-A (H) / 29 dB-A (L)
• Dimensions: 290 mm (H) x 779 mm (W) x 209 mm (D)
• Net Weight: 8 kg
• Refrigerant Pipe Diameter: Liquid Side - ø 6.35 mm (¼ inch), Gas Side - ø 9.52 mm (3/8 inch)
• Pipe Extension: Chargeless Pipe Length - 7.5 m, Maximum Pipe Length - 20 m, Maximum Elevation Length - 15 m
• Power Supply: Indoor
• Odour-Removing Function: Yes
• Removable, Washable Panel: Yes
• SLEEP Mode: Yes
• Powerful Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Airflow Direction Control: Up/Down, Manual Horizontal
• Convenience: 24-Hour ON/OFF Real Setting Timer, LCD Wireless Remote Control, Wired Remote Control (Optional)
• Reliability: Random Auto Restart, Blue Fin Condenser, Top-Panel Maintenance Access
• Note: Please do not use copper pipes less than 0.6mm in thickness.

Outdoor Unit (CU-PN12WKH-1):

• Net Weight: 26 kg
• Long Piping: 20m
• Blue Fin Condenser: Yes
• Self-Diagnostic Function: No
